Installation guide
Step 1: Turn off the power
To avoid the risk of electric shock, it is essential to switch off the power supply to your heating controls.
Step 2: Remove your current heating controls
Hopefully, you’ve taken the advice from Step 1 onboard and you can now safely remove your current heating controls.
TIP: Take a photo of your existing wiring for reference.
Step 3a: Two-Wire Install

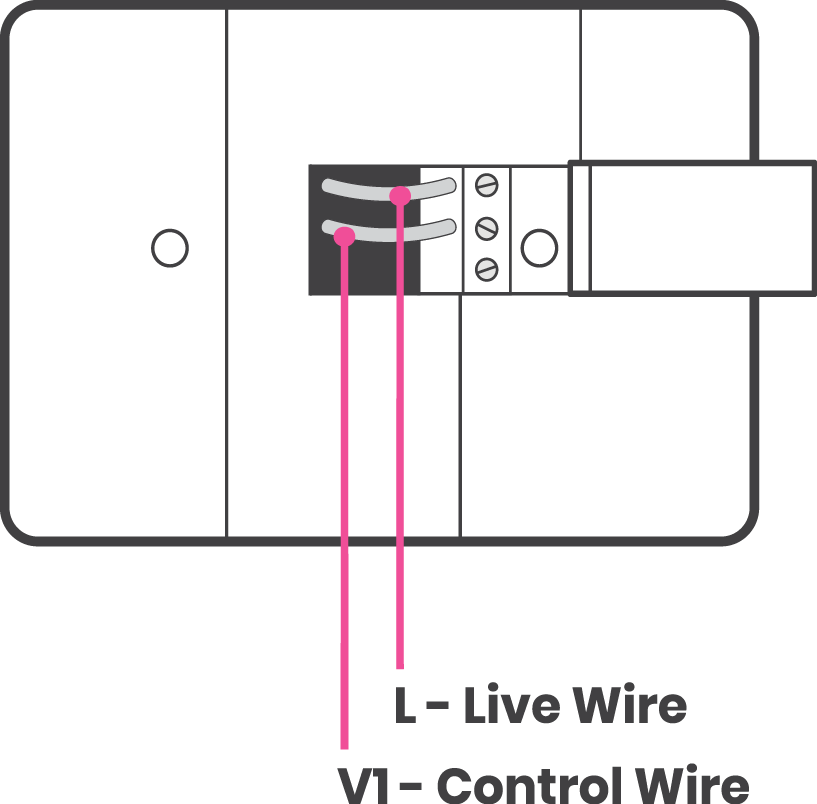

Fit the energyGuard Hub base plate and connect the 2 wires to L and V1. L wire is a live-in connection from the mains (230V) and V1 is a live-out connection.
CAUTION: Connecting the wires incorrectly will damage the device.
Step 3b: Three-Wire Install

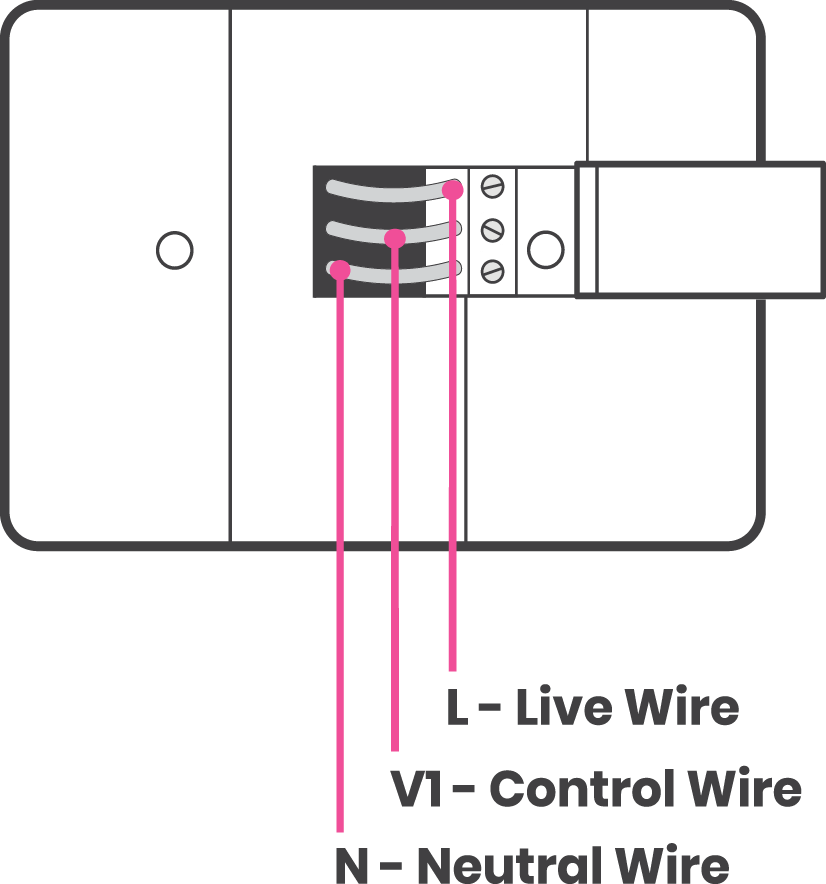

Fit the energyGuard Hub base plate. Connect L and V1 to the top 2 wire slots (see Step 3a) and the neutral wire to the bottom slot.
CAREFUL NOW: Connecting the wires incorrectly will damage the device.
Step 4: Tighten the screws

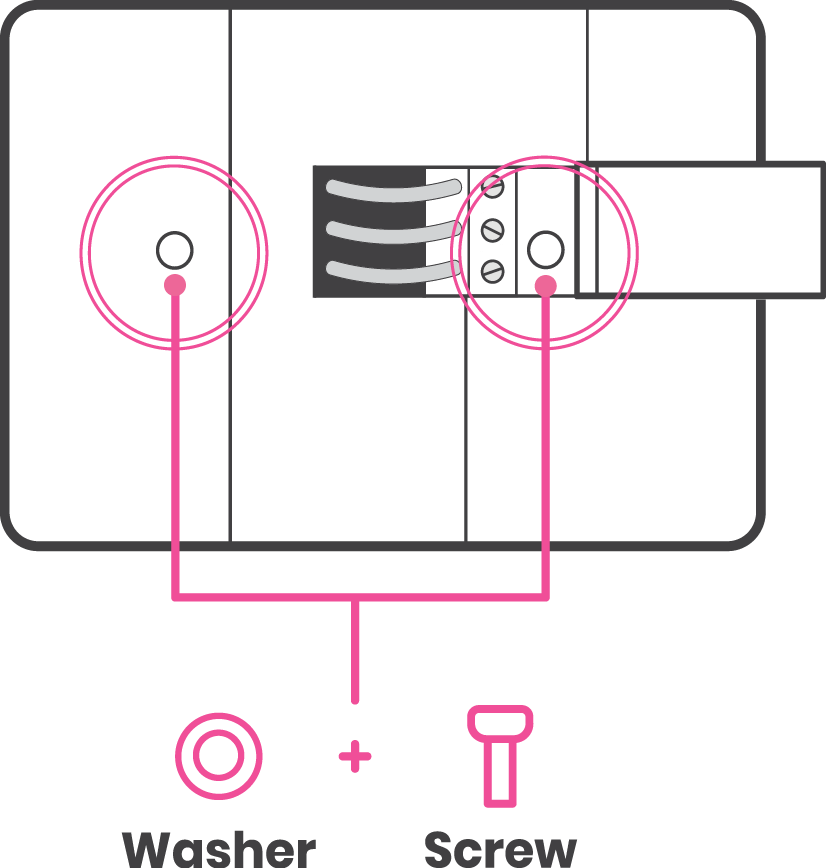

Tighten the base plate to your wall using the screws in the box. Don’t forget to use the washer to make sure it’s on the level.
Step 5: Connect the front panel

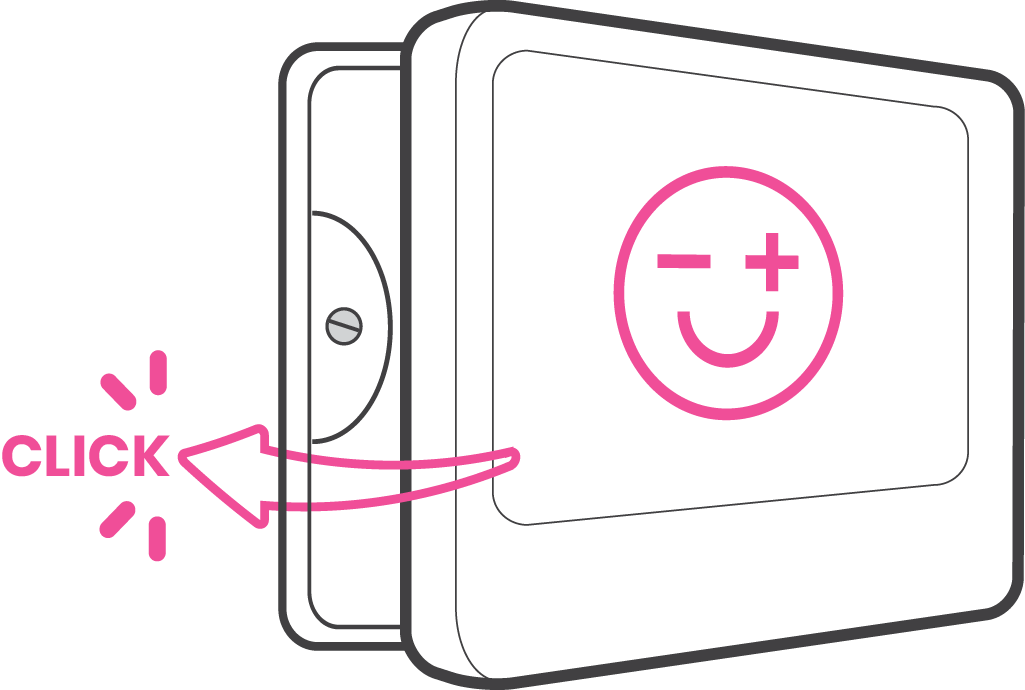

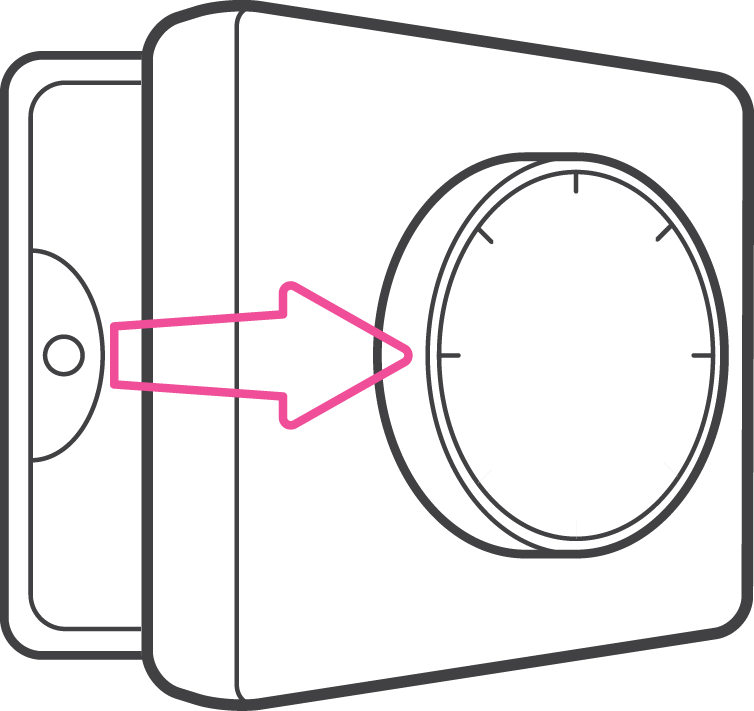

Align the display with the right side of the base plate. Then push the left side down until it clicks into place.
Step 6: Ready to go
Success! energyGuard Hub is now fully functioning and ready to go! It’ll start automatically so just follow the on-screen instructions to go to setup.

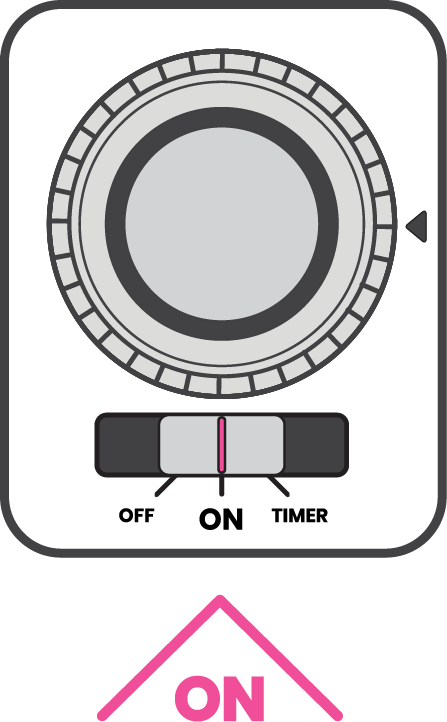

NOTE: If you have a programmer/timer, you will need to set it to constant ON.
